SignalSDR Pro

Why SignalSDR Pro

SignalSDR Pro is a supports a wide range of open-source SDR projects, such as Openwifi, gps-sdr-sim, gnss-sdr, srsRAN 4G/5G, OsmoBTS, openbts, yatebts, OpenAirInterface, and more. Additionally, it is compatible with UHD, Libiio, MATLAB, GNU Radio, LabVIEW, and other software platforms.

Key Features:

  • Complete Interfaces: Includes Gigabit Ethernet port, USB 3.0 port, USB-OTG, USB-TTL, JTAG debugging port, TF Card, Clock Sync, and GPIO.
  • Ultra High Accuracy: Equipped with a ±1ppm high-precision clock and built-in GPSDO, providing higher clock accuracy and supporting external clock synchronization at multiple frequencies.
  • Broad Compatibility: Designed to be compatible with a wide range of SDR hardware, including Ettus USRP B210, PlutoSDR, HackRF, and other popular models, all operable within an SD card.

More information

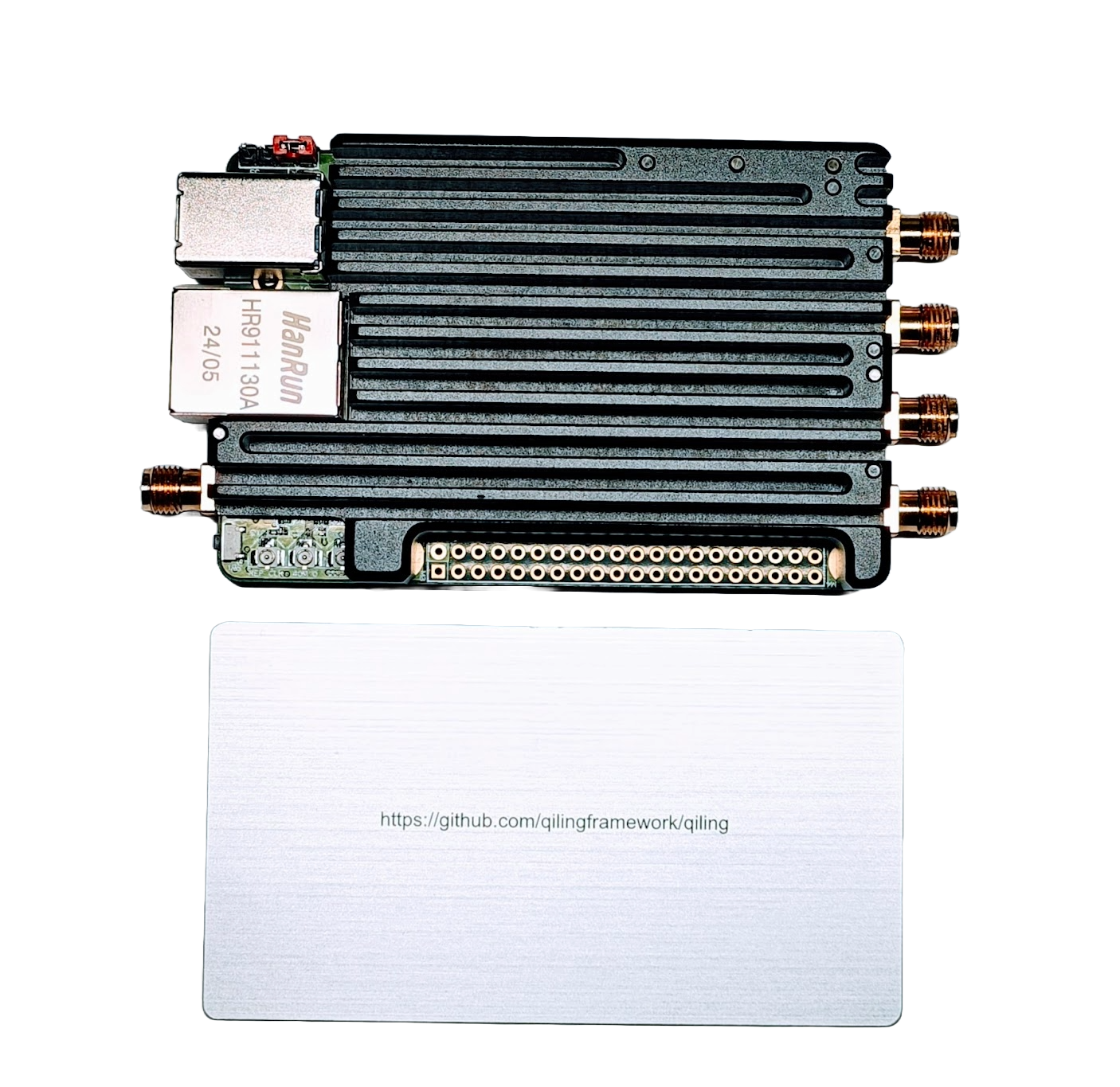

SignalSDRPro Size

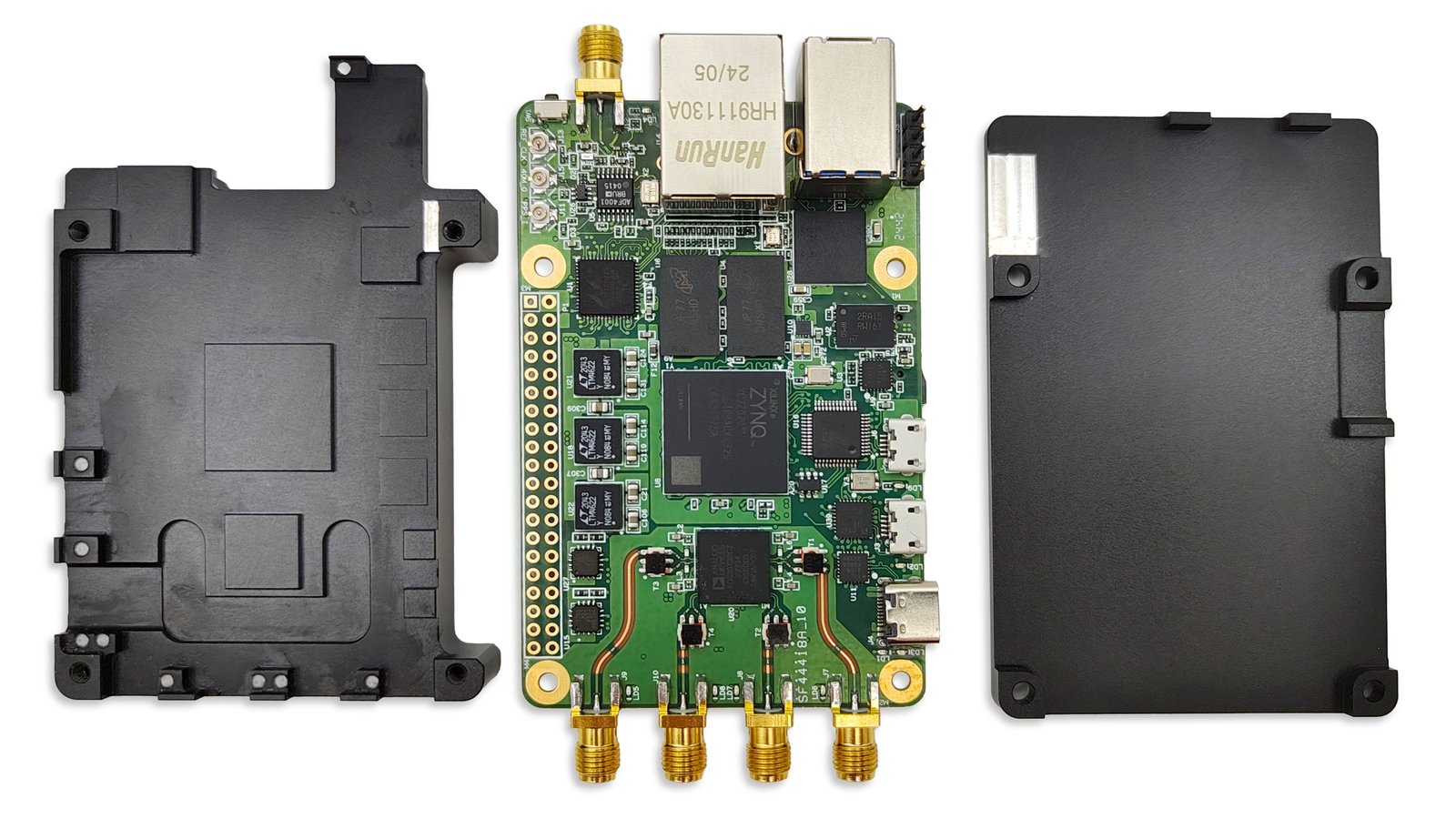

SignalSDRPro Ripped

Specification

Transceiver Chipset: AD9361
Frequency Range: 70 MHz - 6 GHz
Interfaces: Gigabit Ethernet, USB 3.0
External Clock Reference: Yes
Sampling Rate: 61.44 MHz
Resolution: 12 bits
Sample Rate: 61.44 MSPS
Transmit Channels: 2
Receive Channels: 2
Duplexing Mode: Full
Max Bandwidth: 85 kHz

SignalSDRPro Diagram

Showcase

Checkout tutorial/demo and usecases at Github repo

Where to buy

We will be start selling on here
